Hollow Structural Sections (HSS)

Hollow Structural Sections (HSS)

Hollow Structural Sections (HSS)
Categoriessquare steel pipe
BrandYuantai Derun Steel Pipe Manufacturing Group
Modelhss tube
Thickness0.5- 60 mm
CertificationCE,LEED,BV,PHD&EPD,BC1,EN 10210,EN10219,ISO9000
Toleranceas required
Length0.5-26.5M according to client requirement
StandardsASTM A500/A501,EN10219,EN10210
MaterialsGr.A/Gr.B/Gr.C,S235,S275,S355,S420,S460,A36,A53
Delivery Time7-30 Days
FOB portTianjin port
Terms of PaymentL/C, T/T
Download
Update TimeNov 21,2024
Detail Information

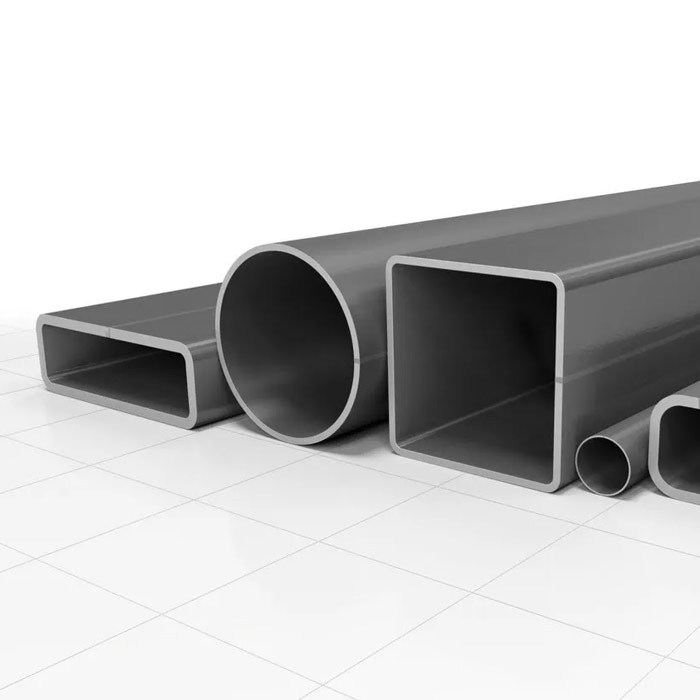

Hollow Structural Sections (HSS)

Hollow Structural Sections (HSS) is a common metal building material. Yuantai Derun is the largest Hollow Structural Sections (HSS) factory in China, which produces Hollow Structural Sections (HSS) with obvious advantages such as high strength and stable performance. Hollow Structural Sections (HSS) are widely used in architectural and mechanical applications. Send your request now.

Type Of Hollow Structural Section(HSS)

At Yuantai Derun, in the sale of hollow structural section type there are mainly the following kinds, each kind of hollow structural section has different performance characteristics, hollow structural section price is not the same, if you need to have the price of hollow structural section, you can immediately contact the customer manager.
Black-Hollow-Structural-Section(HSS)
Black-Hollow-Structural-Section(HSS)
Without Any Coating
Pre Galvanized Hollow Structural Section HSS
Pre Galvanized Hollow Structural Section HSS
Made Of Galvanized Coils
Zinc Aluminum Magnesium Coating Hollow Structural Section
Zinc Aluminum Magnesium Coating Hollow Structural Section
Made Of Zinc Aluminum Magnesium Steel Coils
Hot Dip Galvanized Hollow Structural Section
Hot Dip Galvanized Hollow Structural Section
Hot Dip Galvanizing

More Hollow Structural Sections (HSS) Standard And Grade You Can Choose

You can have more Hollow Structural Section (HSS) standards to choose from at Yuantai Derun, the details of the standards are listed below:
Name
American Standard (US)
European Standard
Canadian Standard
Japanese and Korean Standard
Australian Standard (AS)
HSS Tube Square
ASTM A500/501,ASTM A1085,ASTM A53,ASTM A106,ASTM A513,etc
EN 10219,EN 10210,etc.
CSA G40.20/G40.21,etc
JIS G3466,etc
AS/NZS 1163
HSS Tube Rectangular
HSS Tube Round
Name
Steel Grade
hollow structural steel sections
Gr.A/B/C,S235/275/355/420/460,A36,SS400,Q195/235/355,STKR400/490,300W/350W,etc.
More standards and grades Yuantai Derun can produce,please contact our sales manager.

Complete Hollow Structural Section Dimensions For You

At Yuantai Derun,We have the most complete coverage of hollow structural section sizes in China, whether it is square hollow structural section, rectangular hollow structural section, or circular hollow structural section. Below is the size chart of hollow structural section, in addition, you can also customize the outer diameter, wall thickness, and length of hollow structural section flexibly. Send your size request today.
Shape
Outer Diameter(mm)
Wall Thickness(mm)
Length(M)
square hollow structural section
10*10-1200*1200
0.5-60
0.5-26.5
rectangular hollow structural section
10*15-800*1200
0.5-60
0.5-26.5
circular hollow structural section
10.3-3620
0.5-60
0.5-24

HSS Hollow Structural Sections Properties

HSS Hollow Structural Sections Properties include:
1. Tighter welding seam
The production of each HSS hollow structure section adopts the more advanced welding equipment and welding raw materials in China, which realizes a high degree of fusion between the base material and the weld seam, and reduces the risk of cracking during use.
2. High dimensional accuracy
Hollow Structural Sections (HSS) produced by Yuantai Derun have high dimensional accuracy, and some high-precision customized hollow sections can also be produced.
3. Stable performance
Hollow Structural Sections (HSS) produced by Yuantai Derun have stable performance, which can greatly reduce the subsequent maintenance costs.

Hollow Structural Section Making

Hollow Structural Section Making Process Of Yuantai Derun:
1. ERW HSS Tube Making Process >>More Detail
2. LSAW HSS Tube Making Process>>More Detail
3. SSAW HSS Tube Making Process>>More Detail
4. Seamless HSS Tube Making Process>>More Detail

Application

Hollow Structural Sections (HSS) produced by Yuantai Derun are used in a wide range of applications. Common application scenarios are as follows:
1.Construction field
Assembly building, steel structure plant, greenhouse structure, glass curtain wall structure, stadium, high-grade villa, high-speed railway station, airport, train station, high-speed fence, mine tunnel structure, bridge and so on.
2.Machinery Manufacturing
Agricultural machinery manufacturing, gantry crane manufacturing, shipbuilding, container manufacturing, truck manufacturing, car manufacturing, power equipment manufacturing, fitness equipment manufacturing, chemical machinery manufacturing and so on.
