hot rolled steel square tubing
Detail Information

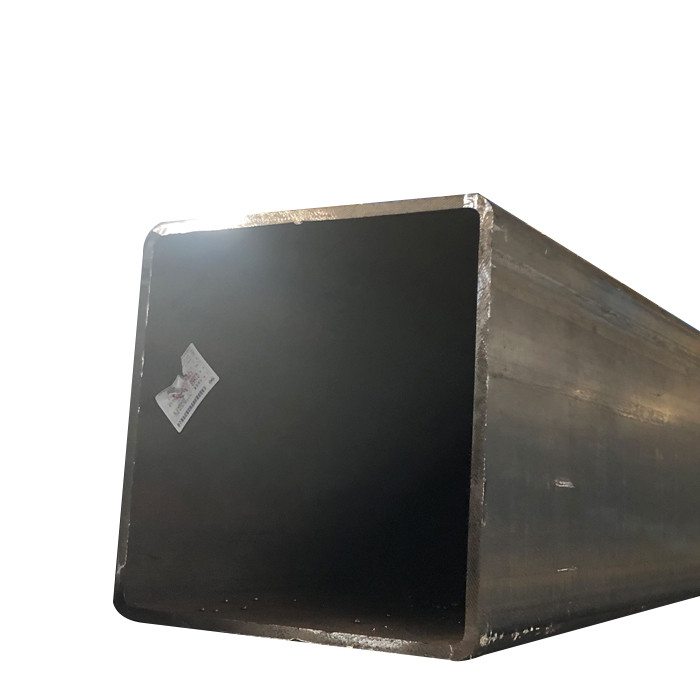

Hot Rolled Steel Square Tubing
Hot rolled steel square tubing is a type of cold formed, electric-resistance welded steel tube or cold formed LSAW/SSAW steel tube. The raw materials for hot-rolled square steel tubes are mostly hot-rolled steel coils or hot-rolled steel plates.
Small diameter hot-rolled steel square tubings are mostly manufactured using the ERW steel tube manufacturing process. In the workshop of Yuantai Derun, we refer to hot-rolled steel square tubings with a diameter below 200 * 200mm as small diameter hot-rolled steel square tubings, and those with an outer diameter greater than 200 * 200mm as large diameter hot-rolled steel square tubes.
Type Of Hot Rolled Steel Square Tubes
Hot Rolled steel square tubing devided into 3 types: ERW steel tube, LSAW steel tube, SSAW steel tube and Seamless square steel tubes.
Shape Of Hot Rolled Steel Square Tube
Outer straight inner round hot-rolled steel square tube
Hot rolled square steel tubes with inner and outer right angles
Round arc R-angle hot-rolled steel square tube
Coating Of Hot Rolled Steel Square Tubes
Pre Galvanizing
Hot Dip Galvanizing
Zinc aluminum magnesium coated
Oil or spray painted
Value Added Services For Other Hot Rolled Steel Square Tubes
Sometimes, customers may have some precision machining requirements, such as drilling, cutting, welding, removing internal welding ribs, bending, beveling, polishing, rust removal, etc. for hot rolled square steel tubing. Yuantai Derun Steel Pipe Group can also follow up with customer requirements for machining.
Cover All Hot Rolled Steel Square Tube Sizes For You
Hot rolled steel square tubing size of Yuantai Derun:
Outer diameter:20*20-1200*1200mm,Wall Thickness:0.5-60mm,length:0.5-26.5M,accept OEM/ODM.
Only a portion of the size specifications of hot rolled steel square tubings are shown here. If you would like to know more, please contact us immediately.
Standard Size |
Outer Diameter(mm)
|
Wall Thickness(mm)
|
Length(M)
|
Pieces/Bundle
|
|
20*20
|
1.3-2.75
|
0.5-26.5
|
144
|
|
|
25*25
|
1.3-2.75
|
0.5-26.5
|
144
|
|
|
30*30
|
1.3-3.75
|
0.5-26.5
|
100
|
|
38*38 | 1.5-2.75 | 0.5-26.5 | 100 | |
40*40 | 1.3-5.75 | 0.5-26.5 | 100 | |
50*50 | 1.3-7.75 | 0.5-26.5 | 64 | |
60*60 | 1.3-7.75 | 0.5-26.5 | 49 | |
70*70 | 2.0-5.75 | 0.5-26.5 | 36 | |
75*75 | 1.4-7.75 | 0.5-26.5 | 36 | |
80*80 | 1.4-7.75 | 0.5-26.5 | 36 | |
90*90 | 2.0-7.75 | 0.5-26.5 | 25 | |
100*100 | 1.8-5.75 | 0.5-26.5 | 25 | |
100*100 | 5.75-11.75 | 0.5-26.5 | 16 | |
120*120 | 2.5-5.75 | 0.5-26.5 | 16 | |
120*120 | 5.75-11.75 | 0.5-26.5 | 16 | |
140*140 | 2.5-11.75 | 0.5-26.5 | 9 | |
150*150 | 2.5-13.75 | 0.5-26.5 | 9 | |
160*160 | 3.0-11.75 | 0.5-26.5 | 9 | |
180*180 | 3.0-13.75 | 0.5-26.5 | 9 | |
200*200 | 2.75-15.75 | 0.5-26.5 | 4 | |
250*250 | 3.75-15.75 | 0.5-26.5 | 4 | |
300*300 | 4.5-15.75 | 0.5-26.5 | 4 | |
350*350 | 5.5-15.75 | 0.5-26.5 | 1 | |
400*400 | 7.5-15.75 | 0.5-26.5 | 1 | |
450*450 | 7.5-15.75 | 0.5-26.5 | 1 | |
500*500 | 9.5-15.75 | 0.5-26.5 | 1 | |
600*600 | 9.5-50 | 0.5-26.5 | 1 | |
700*700 | 9.5-50 | 0.5-26.5 | 1 | |
800*800 | 9.5-50 | 0.5-26.5 | 1 | |
900*900 | 11.5-50 | 0.5-26.5 | 1 | |
1200*1200 | 20-60 | 0.5-26.5 | 1 |
Not Standard Size |
Outer Diameter(mm)
|
Wall Thickness(mm)
|
Length(M)
|
Pieces/Bundle
|
|
32*32
|
1.3-2.75
|
0.5-26.5
|
100
|
|
|
35*35
|
1.3-3.0
|
0.5-26.5
|
100
|
|
|
45*45
|
1.3-4.75
|
0.5-26.5
|
64
|
|
42*42 | 1.3-3.75 | 0.5-26.5 | 100 | |
55*55 | 1.3-5.75 | 0.5-26.5 | 64 | |
125*125 | 2.5-11.75 | 0.5-26.5 | 16 | |
127*127 | 2.5-11.75 | 0.5-26.5 | 16 | |
130*130 | 2.5-9.75 | 0.5-26.5 | 9 | |
135*135 | 3.0-11.75 | 0.5-26.5 | 9 | |
220*220 | 3.75-11.75 | 0.5-26.5 | 4 | |
240*240 | 4.75-11.75 | 0.5-26.5 | 4 | |
280*280 | 4.5-11.75 | 0.5-26.5 | 4 | |
310*310 | 4.5-12.5 | 0.5-26.5 | 4 | |
420*420 | 7.5-40 | 0.5-26.5 | 1 | |
510* 510 | 9.5-40 | 0.5-26.5 | 1 | |
640x 640 | 9.5-50 | 0.5-26.5 | 1 | |
810*810 | 9.5-50 | 0.5-26.5 | 1 | |
1200*1200 | 20-60 | 0.5-26.5 | 1 |
Hot Rolled Steel Square Tubing Manufacturing Process -ERW
Hot rolled steel square tubing manufacturing process(DFT Directly Forming Technology):
Uncoiling - "Leveling - "Shear Butt Welding - "Disc Shearing - "Loose Sleeve Storage - "Roll Forming - "High Frequency Welding - "Deburring - "Water Cooling - "Shaping - "Flaw Detection - "Cutting - "Paint and Anti-Rust - "Inspection - "Spraying Labeling - "Packing and Storage
Hot Rolled Steel Square Tubes Manufacturing Process -LSAW
Hot Rolled Steel square tube manufacturing process(LSAW JCOE):
Steel plate inspection - Trimming - Pre bending - Cold Forming - Double sided submerged arc welding - Sizing - UT Detection -Spraying Labeling - Packing and Storage.
Part Two:
Round JCOE Tubes - Round To Square Tubes Production Line-Square Tube Testing-Storage.
Strict Hot Rolled Steel Square Tubing Testing
The quality control of hot rolled steel square tubing is a concern for steel pipe users, and Yuantai Derun regards the quality of each hot rolled steel square tubing as the lifeline of the enterprise. Yuantai Derun has not only established a CNAS certified laboratory for steel pipe testing, but also strictly controls the quality of steel pipes from the beginning of raw materials, in order to make steel pipe users more confident in their use.
CNAS Certification Testing Center VS. Unknown Small Factory False Test Report
Traceable Raw Materials From Large Brand Factories VS. Raw Materials From Small Workshops With Unknown Sources
Traceable Raw Materials From Large Brand Factories
Raw Materials From Small Workshops With Unknown Sources
High Performance Hot-Rolled Steel Square Tubes VS. Ordinary Square Tubes With Unsatisfactory Performance
High performance hot-rolled steel square tubes
Ordinary Square Tubes With Unsatisfactory Performance
Hot Rolled Steel Square Tubing Products Have Passed Multiple Global Authoritative Certifications
80 patents for structural hot rolled square steel tubing technology，Annual production capacity of 10 million tons.
Yuantai Derun's hot rolled steel square tubings not only cover all dimensions, but also pass European certification EN 10210 and EN 10219, American certification ABS, Singapore green building materials certification BC1, French classification society certification BV, German Norwegian classification society certification DNV, American LEED certification, ISO9001/14001/45001 certification, etc.
22 Years Of Hot Rolled Steel Tubing Manufacturing Experience
Focused on the production and manufacturing of hot rolled square tubing for 22 years.The equipment for hot-rolled square steel tubings is more complete, the technology is more advanced, and the quality is more guaranteed.
Features
Hot roll steel square tube has advantages such as right angled edges, flat surfaces, precise dimensions,high strength, corrosion resistance,easy processing,and good mechanical properties.
right angled edges
flat surfaces
precise dimensions
high strength
corrosion resistance
Good Weld
Video
Application
Hot rolled steel square tube is widely used in industries such as construction, mechanical manufacturing, automotive manufacturing, and aerospace.
Hong Kong T2 Terminal Construction Project
In 2023, hot-rolled steel square tubes were used as structural beams in the Second Terminal of Hong Kong Airport.
Mechanical Manufacturing
Yuantai Derun produce hot rolled steel square tube for mechanical-manufacturing.
Greenhouse Structure
Egypt Million Ferdan Land Improvement Project，used Yuantai Derun hot-dip galvanized and hot-rolled steel square tubes.
Bridge Structure
Yuantai Derun produce hot rolled steel square tube for Bridge Structure，The Hong Kong Zhuhai Macao Bridge project uses hot-rolled steel square tubes as bridge structural supports.
Qinghai Million UHV Photovoltaic Project
Qinghai-million-UHV-photovoltaic-project，we used Yuantai Derun hot-dip galvanized and hot-rolled steel square tubes and steel spiral ground piles.
Google Building in Singapore
Yuantai Derun produce hot rolled steel square tube for Google Building in Singapore.
Packaging And Shipping
Fast And Safe
Usually, hot-rolled steel square pipes without surface treatment are bundled with steel strips and wrapped with PVC before shipment. Some customers also require hot-rolled steel square pipes to be coated with oil, painted, or hot-dip galvanized. If you have any packaging issues, you can contact us immediately.
After-sales Guarantee
- By default the hot rolled steel square tubes from Yuantai Derun will have a 90-day warranty period from the time the customer receives the goods and accepts them.
- Once quality issues are discovered, you can immediately contact our customer manager for after-sales treatment.
- Any other questions, welcome to send us email.
FAQ:
How To calculate steel square tube weight？
The weight of a square tube can be calculated using the following formula: weight=wall thickness x (side length-wall thickness) x 7.85 x length. It should be noted that the calculated weight is only the theoretical weight, not the actual weight. The actual weight of the Yuantai Derun square tube is the weight measured by weighing.
Why Is yuantai Derun One Of Biggest square steel tube manufacturers In World?
Yuantai Derun is not only the largest square steel tube manufacturer in China.It also ranks first in the world market share of square tubes.
Is Lower steel square tube price Better To Us?
Not necessarily, if we blindly pursue low-priced square tubes, there will definitely be discounts on quality. Therefore, Yuantai Derun never competes with competitors in low-priced prices. On the contrary, our square tubes always prioritize quality and price.
how to cut steel square tube?
The most common and safest cutting method is table type cold cutting saw, and another method is angle grinder cutting. However, regardless of which method of cutting is used, safety precautions need to be taken in advance.
where can i buy square tube steel
？
If the quantity is small, go to a retail metal supermarket to purchase. If the quantity is large, exceeding 25 tons or more, please consider purchasing directly from a square tube factory like Yuantai Derun, which will help you save money.
how to weld square tube steel？
To weld square tube steel, you need a MIG welder, welding helmet, gloves, and safety gear. Here's a simple guide:
Wash the square tube steel to remove dirt, rust, or debris.
Put the tubes together in the right way.
Set up your MIG welder according to the instructions and adjust the welding parameters for the thickness of the steel.
Put on your helmet and gloves.
Start welding by moving the welding gun along the joint. Keep the welding speed and distance from the workpiece consistent. Allow the weld to cool before handling it. Practice safety when welding. If you're not experienced, take a welding class or seek guidance from a professional welder.
can you bend square tube steel
?
You can bend square tube steel in different ways, like with a pipe bender, a hydraulic press, or a bending jig. To bend it, you apply pressure to the material to create the shape or angle you want. It's important to use the right tools and techniques to bend it right and not damage the material. If you don't know how to bend metal, ask a professional or read a guide.
can you paint a500 square steel tube?
Ask a professional painter or hardware store for advice on painting a steel tube. To paint a steel tube, follow these steps:
Clean the surface. Wipe off any dirt, rust, or old paint from the steel tube with a wire brush and cleaning solution.
Sand the surface. Sandpaper makes a good surface for the paint to adhere to.
Apply primer: Use a metal primer and apply one coat to the steel tube.
Paint the tube. Choose a paint for metal and apply it in thin, even coats. Let each coat dry before adding another.
Seal the paint. Once the paint is dry, you can add a clear coat or sealant to protect it and make it smooth.
Follow the manufacturer's instructions for the best results.
