Black Steel Gas Pipe High-Quality Black Steel Gas Tube Supplier
Detail Information
Black Steel Gas Pipe High-Quality Black Steel Gas Tube Supplier
Black Steel Gas Pipe overview
First of all, the safety of black steel gas pipes is the basis for guaranteeing gas delivery. The material and construction of gas pipes need to undergo a series of strict inspection and safety certification. Common gas pipe materials include steel pipe, copper pipe and plastic pipe. The materials of these pipes are pressure-resistant, corrosion-resistant and shock-resistant, which can ensure that the gas will not leak or have accidents during transportation.
Secondly, gas pipes play a key role in gas transportation. The gas pipe transports the gas from the gas supply station to the user's home or industrial enterprise, carrying the supply of energy. Reasonable layout of gas pipeline can realize even gas delivery and ensure that users can get stable gas supply at any time. The design of the gas pipe and the setting of the pipeline interval can also reduce the pressure loss of the gas in the process of transmission and improve the efficiency of gas transmission.
Overall, gas pipes play an important role in the safety and delivery of gas. With the right materials and construction, gas pipes can ensure the safe transportation and use of gas. The design and spacing of gas pipes can improve the efficiency of gas transportation. In addition, gas pipes distribute gas to end-use devices so that users can easily use gas for living.
Common Material Components of Black Steel Gas Tube
1. Stainless steel pipe
Stainless steel pipe is composed of iron, chromium, nickel and other metal elements, with excellent corrosion resistance and high strength. Stainless steel pipes are widely used in gas transportation, especially in marine environments, as they are able to resist corrosion from salts contained in seawater and corrosion in humid environments. In addition, stainless steel pipe can adapt to higher pressure and temperature conditions, making it an ideal material for gas pipes.
2. Galvanized Steel Pipe （Galvanized by black steel gas tube）

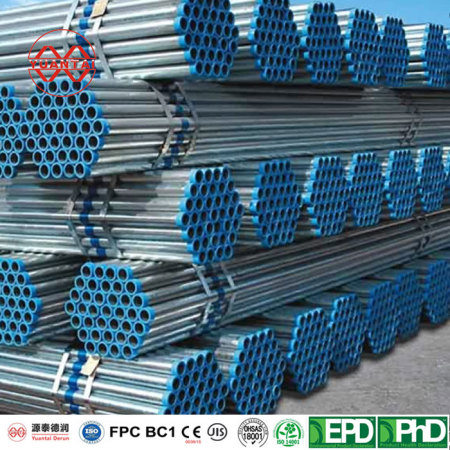

Galvanized steel pipe is a type of pipe made from ordinary carbon steel pipe that has been hot-dipped galvanized. The galvanized layer effectively prevents corrosion and oxidation of the steel pipe and improves its service life. In gas transmission, galvanized steel pipes are commonly used outdoors and in wet environments. They can maintain the integrity and reliability of the pipeline in harsh climatic conditions.
3. Steel-plastic composite pipe
steel-plastic composite pipe is a combination of the inner layer of steel pipe, the outer layer of plastic pipe. Steel-plastic composite pipe set of steel pipe strength and rigidity and plastic pipe corrosion resistance and closed in one. In gas transportation, steel-plastic composite pipe can effectively prevent internal corrosion, leakage and explosion. Because the plastic layer can prevent the corrosive substances in the gas and steel pipe direct contact, steel-plastic composite pipe is widely used in long-distance and high-pressure gas transportation.
4. Copper pipe
Copper pipe is widely used because of its good thermal conductivity, corrosion resistance and plasticity. In gas transportation, copper pipes are commonly used in domestic and commercial areas. Due to the reliability and excellent connecting properties of copper pipes, they are ideal for connecting gas appliances and pipelines.
Yuantai Derun certificate and Professional experience with black gas steel pipe
With 6 black gas steel pipe production lines and 10 hot-dip galvanized gas round pipe production lines, Yuantai Derun Steel Pipe Manufacturing Group has accumulated 21 years of manufacturing experience in the industry and has been involved in more than 6,000 major projects at home and abroad. And the black gas steel pipe has obtained a variety of certifications and endorsements in the industry.
Black gas steel pipe size specification table
1.Galvanized welded steel pipe specification table.
|
DN
|
Inch
|
O.D.
|
Allowable Deviation
|
Ordinary Wall Thickness | Weight per meter (kg/m) |
|
DN6
|
1/8
|
10.0
|
±0.50mm
|
2.00 | |
|
DN8
|
1/4
|
13.5
|
2.25 | ||
|
DN10
|
3/8
|
17.0
|
2.25 | ||
DN15 | 1/2 | 21.3 | 2.75 | 1.30 kg/m | |
DN20 | 3/4 | 26.8 | 2.75 | 1.69 kg/m | |
DN25 | 1 | 33.5 | 3.25 | 2.50 kg/m | |
DN32 | 1 1/4 | 42.3 | 3.25 | ||
DN40 | 1 1/2 | 48.0 | 3.50 | 3.98 kg/m | |
DN50 | 2 | 60.0 | 3.50 | 5.05 kg/m |
2.Specification of Welded Steel Pipe for Gas.
|
DN
|
Inch
|
O.D.
|
Allowable Deviation
|
Ordinary Wall Thickness | Weight per meter (kg/m) |
|
DN50
|
2
|
60
|
±1%mm |
3.50 | 4.88 kg/m |
|
DN65
|
2 1/2
|
75.5
|
3.75 | 6.64 kg/m | |
|
DN80
|
3
|
88.5
|
4.00 | 8.34 kg/m | |
DN100 | 4 | 114.0 | 4.00 | 10.85 kg/m | |
DN125 | 5 | 140.0 | 4.00 | 13.42 kg/m | |
DN150 | 6 | 165.0 | 4.50 | 17.81 kg/m |
3.Specification table of seamless steel pipe for gas:
|
Size Φ（mm）
|
Weight per meter (kg/m)
|
φ 89X4 | 8.38 kg/m |
φ 108X5 | 12.70 kg/m |
φ 159X6 | 22.64 kg/m |
|
φ 219X8
|
41.63 kg/m
|
|
φ 325X8
|
62.54 kg/m
|

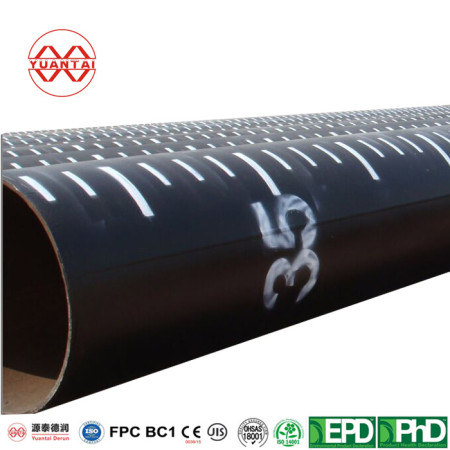

4.Specification table of spiral steel pipe for gas:
|
Size Φ（mm）
|
Weight per meter (kg/m)
|
φ 219X7 | 36.60 kg/m |
φ 325X7 | 54.87 kg/m |
φ 426X8 | 82.43 kg/m |
5.Specification table of gas cast iron pipe SMJ.
|
DN
|
Weight per meter (kg/m)
|
DN100 | 23.85 kg/m |
DN150 | 36.55 kg/m |
DN200 | 49.68 kg/m |
DN300 | 84.22 kg/m |
DN400 | 125.93 kg/m |
Certificate
Certificate of YuantaiDerun steel pipe manufacturing group
Some people are worried that yuantaiderun steel pipe group has no qualification for the construction project. Now we will show you one by one. There are European standard hollow section profile, American Standard, Japanese standard, BC1, BV, ISO and other certificates. Next time, we will show you the engineering project case of yuantaiderun steel pipe manufacturing group.# API-5L-line-tube
