Customized Zinc Aluminum Magnesium Coated Steel Tube
Customized Zinc Aluminum Magnesium Coated Steel Tube
Detail Information
Customized Zinc Aluminum Magnesium Coated Steel Tube
Customized Zinc Aluminum Magnesium Coated Steel Tube is also a requirement of some customers. When you need zinc aluminum magnesium coated steel pipes with special sizes, lengths, and shapes, Yuan Taide Run can also provide customized services for zinc aluminum magnesium coated steel pipes. Below is a detailed introduction to the customization options for our zinc aluminum magnesium coated steel pipes.
Customized Shape Of Zinc Aluminum Magnesium Coated Steel Pipe
At Yuantai Derun, you can flexibly customize the shape of zinc aluminum magnesium coated steel pipes, such as square, rectangular, circular, or irregular shapes, etc. Send your shape request immediately.

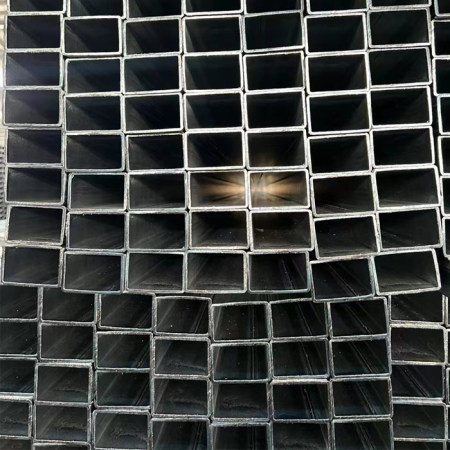

Square ZAM Coated Steel Tube
Rectangular ZAM Coated Tube
Round ZAM Coating Pipe
Oval Shaped ZAM Tube
Customized Size Of Zinc Aluminum Magnesium Coated Steel Tube
At Yuantai Derun,you can flexibly customize the size of zinc aluminum magnesium coated steel tube,The customized range of outer diameter and wall thickness is shown in the table below: Please send your size requirements immediately.
|
Shape
|
Outer Diameter(mm)
|
Wall Thickness(mm)
|
Length(M)
|
|
Square
|
10*10-200*200
|
0.5-2.75
|
1-24
|
|
Rectangular
|
10*15-100*300
|
0.5-2.75
|
1-24
|
|
Round
|
10.3-219
|
0.5-2.75
|
1-24
|
Customized Grade Of Zn AL Mg Coated Steel Tube
At Yuantai Derun,you can flexibly customize the grade for your Zn AL Mg coated steel tube. Such as S250GD+ZM,S350GD+ZM,S420GD+ZM,S450GD-ZM,etc.
The following is a table of mechanical properties corresponding to various steel strip grades. To learn more, please contact the account manager.
|
Mechanical Properties Of Steel Strip
|
|||
|
Grade
|
Upper Yield Strength(Mpa)
|
Tensile Strength(Mpa)
|
Elongation After Fracture(%)
|
|
Not less than
|
|||
S220GD+ZM | 220 | 300 | 20 |
S250GD+ZM | 250 | 330 | 19 |
S280GD+ZM | 280 | 360 | 18 |
S320GD+ZM | 320 | 390 | 17 |
S350GD+ZM | 350 | 420 | 16 |
|
S390GD+ZM
|
390
|
460
|
16
|
S420GD+ZM | 420 | 480 | 15 |
S450GD-ZM | 450 | 510 | 14 |
