hot dip galvanized groove steel pipe
hot dip galvanized groove steel pipe
| Categories | Hot Dipped Galvanized Steel Pipe |
|---|---|
| Brand | Yuantai Derun Steel Pipe Manufacturing Group |
| Model | hot dip galvanized grooved steel pipe |
| Thickness | 0.5- 16 mm |
| OD(outer diameter) | 10.3mm-609mm |
| Supply capacity | Annual output of 1 million tons |
| Certification | CE,LEED,BV,PHD&EPD,BC1,EN10210/10219,ISO |
| Tolerance | as required |
| Length | 0.5-24M according to client requirement |
| Standards | ASTM A53 , ASTM A795 |
| Materials | Gr.A,Gr.B,Gr.C,S275J0H,S355JR,S355J0H,S355J2H,A36, |
| Packaging | Customers't Requirement |
| Delivery Time | 7-30 Days |
| FOB port | Tianjin port |
| Terms of Payment | L/C, T/T |
| Update Time | Dec 22,2024 |
Detail Information
Grooved Galvanized Steel Pipe China Factory Yuantai Derun Group
Groove End Pipe Detail:
|
Name
|
Size
|
Wall Thickness
|
Length
|
|
ERW Pipe
|
φ：10.3-609mm
|
0.5-16mm
|
0.5-24M
|
|
Spiral welded pipe
|
φ：219-3620mm
|
1.5-30mm
|
0.5-24M
|
|
oil casting steel pipe
|
φ：200-2020mm
|
5-28mm
|
0.5-24M
|

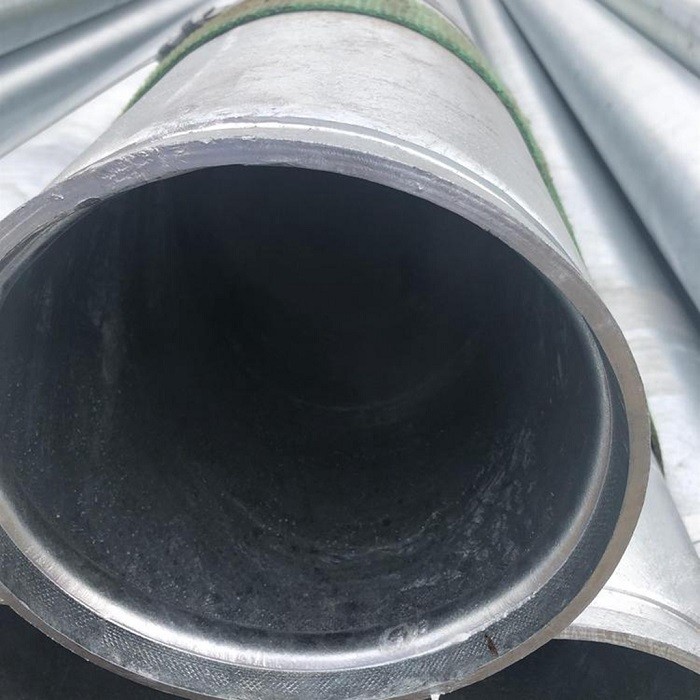

Pipe Ends Finished:
Rolling groove end, slotting end. This end can be used to connect slotted accessories such as slotted clamps, slotted elbows, and tees.
Mechanical Properties:
Hydrostatic Test: 5000kPa (725psi)
Max. System Working Pressure: 2068kPa (300psi)
Grooved Galvanized Steel Pipe Specifications and Zinc Coating Detail:
|
Name
|
Pre Galvanized Groove End Pipe
|
Hot Dip Galvanized Groove Steel Pipes
|
|
O.D.(φ)
|
1/2''-8'' (round tubing)
|
1''-18'' (round tubing)
|
|
W.T.
|
1.3-10mm
|
5-30mm
|
|
Length
|
0.5-24 or customized
|
0.5-24M or customized
|
Zinc Coating | 30-120g/m2 | 220-480g/m2 |
Standard | EN39, ASTM A53, BS1387-85, GB/T3091-08, JIS-G3444, ISO65, BS1139, AS 1074, AS 2419 & AS 4118,etc | |
Packing | In bundles, packed in woven bag; in loose; or request. | |
Delivery Time | about 3 -40 days | |
Hot Dip Galvanized Grooved Steel Pipe Advantages And Features
The pressure groove hot dipped galvanised steel pipe produced by Yuantai Derun is corrosion-resistant, with smooth pipe surface, high internal and external wall finish, low fluid resistance, no joint pipe, the raw materials are from the guaranteed big factory raw materials, 100% conform to the international standard, good hygienic performance, OEM/OBM/ODM is acceptable, welcome to consult and order for the steel pipe sellers all over the world.
Corrosion Resistance
Yuantaiderun galvanized carbon steel pipe grooved ends have good corrosion resistance.
Pipe Surface Is Smooth
The surface of the hot dip galvanized grooved steel pipe shall be smooth without burrs.
No Joint Pipe
There is no joint pipe in the finished galvanized grooved end steel pipe
Raw Materials Are Guaranteed
Yuantai Derun raw meterial are all from large factory direct supply,good quality are guaranteed
Each steel pipe 100% complies with international standards
Each steel pipe is inspected layer by layer
OEM&ODM&OBM
Yuantai Derun accepts hot dip galvanized grooved steel pipe OEM,ODM,OBM
Large Pipe Stock
Yuantai Derun has large groove pipe stock
Fully Qualified
Yuantai Derun has fully qualified,such as BS 1387,a795 steel pipe grooved ends,etc.
Groove Pipes Without Galvanized
This is un-galvanised groove pipe and the quality is great.
Pipe Making Process:
Hot Dip Galvanized Groove Steel Pipe Making Process
Grooved Black Carbon Steel Tube>Hydrostatic Test>Tafoni Deoiling>Pickling&Remove Rust>Washing>Solvent>Linning>Drying>Hot Dipped Galvanizing>Outside Blasting>Inside Blasting>Water Cooling>Proceed Inspection>Panssivation>Proceed Cleaning>Drying>Remark>Sprinkling Passivation>Print Color Belt>Packing>Final Examination Storage
Pre Galvanized Groove Steel Pipe Manufacturing Process
GI steel coil> uncoiling> Shear Butt Welding>Cold Forming>High Frequency Welding>Sizing>Cutting>Groove>Storage
Strict Product Inspection
Each steel pipe must pass the inspection layer by layer. Only the products that pass the inspection can leave the factory. Never let an unqualified product flow into the market，Yuantai Derun has a CNAS certified testing center,so Yuantai Derun is one of good a795 steel pipe grooved ends suppliers in China.Look,our pipe testing center have this pipe test like this picture below.
Use
Galvanized groove steel pipes are widely used in industries such as natural gas transportation, oil transportation, water supply and drainage, and mining.
Underground Gas Pumping
Underground positive and negative pressure ventilation
Water supply and water drainage
Coal mine underground slurry spraying
Firefighting piping
Electrical piping
mechanical piping
oil and gas pipeline
Certificate
Yuantai Derun can produce groove end steel pipe ,it meets AS 1074 for general-purpose steel pipes, AS 2419 for fire hydrants, AS 4118 for automatic sprinkler systems, AS 4792 for coating quality 300g/SQM, AS 4118 and AS 2419 for applications, and UL certification.Yuantai Derun is certified by iso9001,iso18001,iso45001,BV,etc,Yuantai Derun is one of good a795 steel pipe grooved ends factories
ISO9001
Production of Hollow Section Tubes & Hot-dipGalvanized Tubes, Sales& Service of Metal Materials(except the scope of legal mandatory requirements)
BV
This certficate is issued to attest that Bureau Vveritas Marine & Ofishore has perormed, at the above company's request and in compliance withthe requirements of NR320,a satisfactory assessment of the manudacturing facilities and associated quality procedures related to the ranrge of therecogniition.
ISO14001（GB/T 24001）
ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATE
OHSAS 18001(GB/T28001-2011)
OCCUPATIONAL HEALTH AND SAFETYMANAGEMENT SYSTEM CERTIFICATE
