Hot Rolled Steel Rectangular Tubing mill yuantaiderun(can oem odm obm)
Hot Rolled Steel Rectangular Tubing mill yuantaiderun(can oem odm obm)
| Categories | Hot Dipped Galvanized Steel Pipe |
|---|---|
| Brand | Yuantai Derun Steel Pipe Manufacturing Group |
| Model | GI tube |
| Thickness | 0.5-60mm |
| OD(outer diameter) | 10*15mm-800*1200mm |
| Grade | Gr.A/Gr.B/Gr.C,S235/S275/S355/S420/S460,A36 |
| Surface | Customers't Requirement |
| Delivery Time | 7-30 Days |
| Standards | ASTM A500/A501,EN10219, EN10210etc |
| Length | 0.5-26M according to client requirement |
| Tolerance | standard or as required |
| Certification | CE,LEED,BV,PHD&EPD,BC1,EN10210,EN10219,ISO9000,etc |
| FOB port | Tianjin |
| Terms of Payment | L/C, T/T |
| Update Time | Nov 21,2024 |
Detail Information

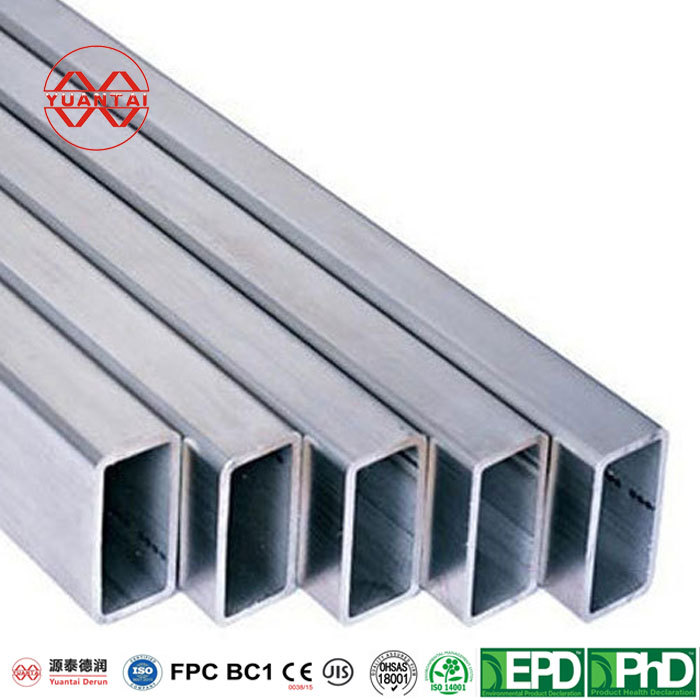

Hot Rolled Steel Rectangular Tubing Mill Yuantai Derun(Can Oem Odm Obm)
hot rolled steel rectangular tubing is a kind very important metal material in building industry.Hot rolled steel rectangular tubing is a type of structural steel tubing that is produced through a hot rolling process. The hot rolling process involves heating a steel billet or sheet until it is pliable, then passing it through a series of rollers to shape it into the desired rectangular cross-section. This process enhances the strength and durability of the steel tubing.
Steel Rectangular Tubing Sizes
Hot rolled steel rectangular tubing sizes are very complete.Outer diameter:20*20-1200*1200mm,Wall Thickness：0.5-60mm Length：0.5-26.5M.If you need contact us or click website download.
Weight Of Steel Rectangular Tubing
The weight of hot-rolled steel rectangular tubing can be divided into theoretical weight and actual weighing weight. If you want to know the theoretical weight of hot-rolled steel rectangular tubing, you can use the formula for calculating the theoretical weight of hot-rolled steel rectangular tubing：Steel rectangular tubing kg/m=[2 x (length+width) -4 x wall thickness] x wall thickness x 0.00785 units in millimeters.if you want : steel rectangular tubing weight per foot,please contact us now.
Hot Rolled Steel Rectangle Tubing Benefits
Hot rolled steel rectangular tubing offers several benefits, including:
1. High Strength
2. Low Cost
3. Versatility
4. Weldability
5. Durability
6. Recyclable
7. Firmer
Hot Rolled Rectangular Tubing Applications
Hot rolled steel rectangular tubing provide a universal solution for industrial applications, which can be used for:
1. Building construction
2. Automobile Making
3. Industrial Equipment
4. Photovoltaic Bracket
5. Furniture Manufacturing
6. Fitness Equipment
7. AEROSPACE
8. Decoration
9. Billboards
10. Agricultural Machinery
11. Crane
Hot Rolled Rectangular Tubing Added Service
When you order from Yuantai Derun,we offer surface treatment service. such as oiling,galvanizing,painting,etc.we also offer customized cutting service.if you need added service,please contact us.
Hot Rolled Steel Rectangular Tubing Sizes And Properties
Hot Rolled Steel Rectangular Tubing Properties
Hot rolled steel rectangular tubes are sturdy, weldable, easy to form, and cost-effective in structural applications. It may require anti-corrosion protection. For example, hot-dip galvanizing treatment, oil coating, painting, etc.
| Hot Rolled Steel Rectangular Tubing Sizes Unit: mm | |||||
| Non-standard size | standard size | thickness | non-standard size | standard size | thickness |
| 1.0 | 1.5 | ||||
| 1.2 | 1.7 | ||||
| 1.3 | 40*135 | 50*150 | 2.0 | ||
| 19*19 | 20*20 | 1.4 | 50*140 | 60*140 | 2.2 |
| 1.5 | 60*130 | 80*120 | 2.5~5.0 | ||
| 153 | 1.7 | 75*125 | 100*100 | 5.25~6.0 | |
| 2.0 | 6.5~9.75 | ||||
| 1.0 | 395 | 11.5~16 | |||
| 1.2 | 50*160 | 2.5 | |||
| 1.3 | 60*150 | 60*160 | 2.75 | ||
| 25*25 | 1.4 | 60*180 | 80*140 | 3.0~4.0 | |
| 1.5 | 65*180 | 80*160 | 4.25~4.75 | ||
| 153 | 20*30 | 1.7 | 70*150 | 100*150 | 5.25~6.0 |
| 1.8 | 90*150 | 120*120 | 6.5~7.75 | ||
| 2.0 | 90*160 | 110*110 | 9.5~9.75 | ||
| 2.2 | 100*120 | 120*180 | 10.5~11.75 | ||
| 2.5~3.0 | 100*125 | 125*125 | 12.5~15.75 | ||
| 1.0 | 100*140 | 470 | 16~~30 | ||
| 20*40 | 1.2 | 60*170 | 75*150 | 2.5 | |
| 20*50 | 1.3 | 70*16070*200 | 100*200 | 2.75 | |
| 25*40 | 1.4 | 80*150 | 140*140 | 3.0~5.75 | |
| 32*32 | 1.5 | 80*180 | 150*150 | 7.5~9.75 | |
| 30*30 | 1.7 | 127*127 | 130*130 | 10.5~11.75 | |
| 35*35 | 1.8 | 570 | 12.5~15 | ||
| 30*40 | 2.0 | 60*200 | 100*250 | 2.5 | |
| 2.2 | 60*220 | 160*160 | 2.75~3.25 | ||
| 2.5~3.0 | 80*200 | 180*180 | 3.5~5.0 | ||
| 232 | 3.5~3.75 | 80*220 | 140*180 | 5.25~7.75 | |
| 1.2 | 100*180 | 150*170 | 9.5~11.75 | ||
| 1.3 | 120*160 | 150*180 | 12.5~15.75 | ||
| 1.4 | 120*200 | 150*200 | 16~~30 | ||
| 20*60 | 25*50 | 1.5 | 100*350 | 2.75 | |
| 20*80 | 30*50 | 1.7 | 125*250 | 3.0~3.25 | |
| 25*65 | 30*60 | 1.8 | 130*250 | 100*300 | 3.5~9.75 |
| 30*70 | 40*40 | 2.0 | 135*135 | 150*250 | 11.5~11.75 |
| 35*60 | 40*50 | 2.2 | 140*240 | 200*200 | 12.5~14.75 |
| 38*38 | 40*60 | 2.5~4.0 | 150*220 | 200*250 | 15.5~15.75 |
| 45*45 | 50*50 | 4.25~5.0 | 225*225 | 770 | 16~~30 |
| 5.25~5.75 | 100*400 | 150*300 | 3.5~4.0 | ||
| 153 | 5.75~6.0 | 130*300 | 200*300 | 4.5~7.75 | |
| 1.3 | 150*350 | 250*250 | 9.5~11.75 | ||
| 1.4 | 200*280 | 180*300 | 12.5~14.75 | ||
| 30*100 | 40*80 | 1.5 | 220*220 | 1010 | 15.5~17.75 |
| 40*70 | 40*100 | 1.7 | 200*350 | 200*400 | 4.75~11.75 |
| 40*90 | 50*70 | 1.8 | 250*350 | 250*300 | 12.5~14.75 |
| 50*60 | 50*80 | 2.0 | 300*300 | 15.5~17.75 | |
| 50*75 | 60*60 | 2.2 | 200*500 | 4.75~11.75 | |
| 50*90 | 60*80 | 2.5~4.0 | 300*320 | 250*450 | 12.5~14.75 |
| 55*55 | 70*70 | 4.25~5.0 | 300*350 | 300*400 | 15.5~17.75 |
| 65*65 | 5.25~5.75 | 350*350 | 18~~30 | ||
| 232 | 5.75~6.0 | 200*450 | 200*600 | 4.5~5.75 | |
| 1.3 | 250*400 | 280*280 | 6.5~11.75 | ||
| 40*120 | 50*100 | 1.5 | 250*500 | 300*500 | 12.5~14.75 |
| 40*140 | 60*90 | 1.7 | 300*450 | 350*400 | 15.5~17.75 |
| 50*110 | 60*100 | 1.8 | 400*400 | 18~~30 | |
| 50*120 | 60*120 | 2.0 | 300*650 | 300*600 | 4.5~7.75 |
| 50*125 | 75*75 | 2.2 | 400*500 | 9.5~9.75 | |
| 70*100 | 80*80 | 2.5~4.0 | 300*700 | 400*600 | 11.5~13.75 |
| 85*85 | 80*100 | 4.25~5.0 | 450*450 | 14.5~15.75 | |
| 90*90 | 5.25~5.75 | 320*320 | 500*500 | 16.5~17.75 | |
| 312 | 7.5~9.75 | 18~~30 | |||
| 1300*1300 | 70~80 | ||||
| The length, width and thickness of other specifications can be customized | |||||
Why Choose Yuantai Derun?
- 1. 100% after-sales quality and quantity assurance.
- 2. Professional sales manager quickly reply within 24 hours.
- 3. Large Stock(200000 Tons spot inventory) for regular sizes.
- 4. Free sample 20cm high quality.
- 5. Strong produce capability(10 million tons / year) and capital flow.
- 6. Small order accepted.(MOQ:2-5 Tons)
- 7. Brand name raw material
- 8. Support OEM or ODM
- 9. 22 years Manufacturing experience
- 10. It can manufacture steel pipes of different projects and standards in the world
- 11. ISO 9001/45001/14001/CE/BV/ABS/DNV/LEED/BC1 certified
