AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections
AS/NZS 1163 cold-formed structural steel hollow sections.They are very common metal building material,Often used in building structures and mechanical structures.
Shape Of AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections
Square Hollow Section
Rectangular Hollow Section
Circular Hollow Section
Chemical Composition
Standard | Grade |
Chemical Composition
|
||||||
|
C(%)
Max |
Si(%)
Max |
Mn(%)
Max |
P(%)
Max | S(%)
Max |
Mo(%)
Max |
Ceq or Cev 2]
(%)Max |
||
AS/NZS 1163 | C250 | 0.12 | 0.05 | 0.50 | 0.040 | 0.030 | 0.10 | 0.25 |
C250L0 | 0.12 | 0.05 | 0.50 | 0.040 | 0.030 | 0.10 | 0.25 | |
C350 |
0.20
|
0.25 |
1.60
|
0.040 | 0.030 |
0.10
|
0.39
|
|
C350L0 |
0.20
|
0.25 |
1.60
|
0.040 | 0.030 |
0.10
|
0.39
|
|
C450 | 0.20 | 0.45 | 1.60 | 0.040 | 0.030 | 0.35 | 0.39 | |
C450L0 | 0.20 | 0.45 | 1.60 | 0.040 | 0.030 | 0.35 | 0.39 | |
Mechanical Properties
Standard Name |
Steel Grade
|
Yield Strength(N/mm2(min))
|
Tensile Strength((N/mm2)
Min or Min/Max) |
Elongation Min.(%)
|
||
T<3mm | 3mm<T<40mm | SHS or RHS | CHS | |||
AS/NZS 1163 |
C250
|
250
|
320
|
18
|
22 | |
C250L0 | 250 | 320 | 18 | 22 | ||
C350 | 350 | 430 | 16 | 20 | ||
C350L0 | 350 | 430 | 16 | 20 | ||
C450 | 450 | 500 | 14 | 16 | ||
|
C450L0
|
450
|
500
|
14
|
16 | ||
AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections Size
Square Hollow Section O.D.:10*10-1200*1200mm Wall Thickness:0.5-60mm Length:0.5-26.5M
Rectangular Hollow Section O.D.:10*15-800*1200mm Wall Thickness:0.5-60mm Length:0.5-26.5M
Circular Hollow Section φ：10.3-3620mm Wall Thickness:0.5-60mm Length:0.5-24M
AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections Tolerances
Dimensions are measured according to AS/NZS 1163.The details are shown in the table below.
|
Characteristics
|
Tolerances
|
|
External dimensions
|
±1%, with minimum of 0.5mm
|
|
Thickness (t)
|
±10%
|
|
Concavity / Convexity
|
Max. 0.8% or 0.5mm.
|
Squareness of sides | 90°±1° |
External corner profile | (Equivalent to 50x50 or less) 1.5t to 3.0t (Equivalent to greater than 50x50) 1.8t to 3.0t |
Twist | 2mm+0.5mm/m in length |
Straightness | 0.15% of total length |
Mass per unit length | Not less than 0.96 times the specified mass on individual lengths |
Length Mill (or 'unspecified') length | 0, +100mm |
Precision length | |
L<6,000mm | 0, +5mm |
6,000mm≤L≤10,000mm | 0, +15mm |
10,000mm<L | 0, +5mm+1mm/m |
Making Process
ERW Tubes Making Process: uncoiling-straightening-cold forming-high frequency resistance welding-remove excess welding bars-sizing-cutting-test-stock.
LSAW Tubes Making Process: board point testing-Trimming-pre bending-JCOE cold form-Pre welding-inner welding-outer welding-Grinding-sizing-groove-cutting-UT test-storage
Surface Treatment
AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections .There are generally four ways of surface treatment.
1.Bare；2.Oilling；3.Painted；4.Galvanized；5.Galvanized aluminum magnesium；
Packing Quantity
AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections packing quantity,click this website:https://www.yuantaisteelpipe.com/oid1752731/Packaging-Quantity.htm or contact us.
Why Choose Yuantai Derun?
Universal Structural Steel Hollow Section Supplier
8 factories, 103 production lines, 80 patented technologies, China's top 500 private enterprises and China's top 500 manufacturing industries, with an annual output of 10 million tons and a perennial spot supply of 200000 tons. China's largest steel hollow section manufacturer.
YuantaiDerun's main products include square steel pipe, rectangular steel pipe, hot-dip galvanized steel pipe, ERW steel pipe, large-diameter thick wall square rectangular pipe, LSAW steel pipe, spiral steel pipe, ZAM coating steel pipe, ZAM steel coil and PV support.
- 1. 100% after-sales quality and quantity assurance.
- 2. Professional sales manager quickly reply within 24 hours.
- 3. Large Stock for regular sizes(more than 200000 tons).
- 4. Free sample 20cm high quality.
- 5. Strong produce capability(10 million tons/ year) and capital flow.
- 6. Small order accepted.MOQ:2-5 Tons
- 7. Brand name raw material
- 8. Support OEM or ODM
- 9. 20 years Manufacturing experience
- 10. It can manufacture steel pipes of different projects and standards in the world
AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections Spot Stocks
Pre Galvanized AS/NZS 1163 Circular Hollow Section
Hot Dip Galvanized AS/NZS 1163 Circular Hollow Section
ZAM Coating AS/NZS 1163 Circular Hollow Section
ZAM Coating AS/NZS 1163 Square Hollow Section
Hot Dip Galvanized AS/NZS 1163 Rectangular Hollow Section
Pre Galvanized AS/NZS 1163 Square Hollow Section

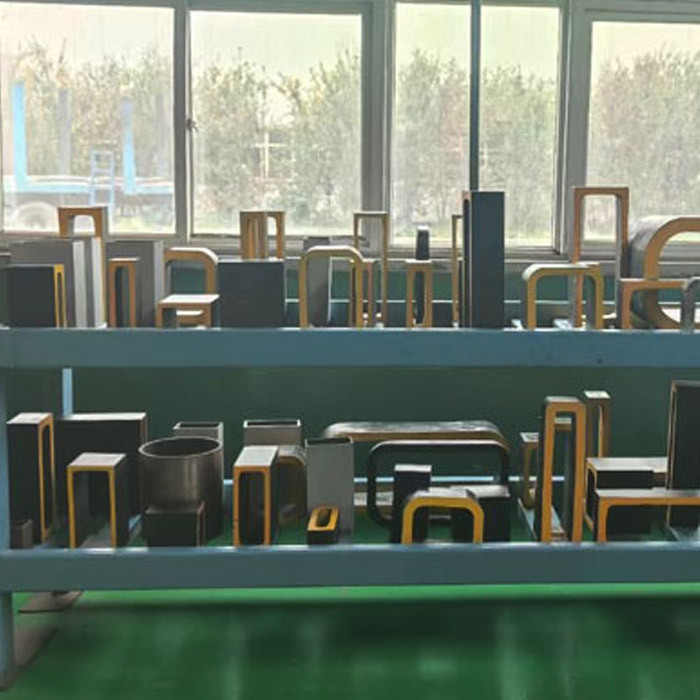

AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections Sample Video
Yuantai Derun Steel Pipe Group can provide customers with free AS/NZS 1163 Cold-Formed Structural Steel Hollow Sections Sample.If the sample length is within 20 centimeters, you only need to pay a little shipping fee to get it.
Use
AIRPORT VENUES
EXPO VENUES
BRIDGE CONSTRUCTION
BUILDING CONSTRUCTION
GREENHOUSE CONSTRUCTION
CBD BUSINESS DISTRICT BUILDING
FAQ:
What is the Australian standard as 1163?
Australian Standard AS1163 is a standard published by the Australian Standards Institute, covering requirements for steel structure design and construction. The standard AS1163 includes provisions regarding structural steel materials, design requirements, manufacturing, installation, and acceptance. The derived AS1163 standard has corresponding sections covering specific content in different aspects. If you need specific information, you can refer to the specific AS1163 standard document(as nzs 1163 pdf) or consult us.
What is cold-formed structural steel hollow sections?
Cold-formed structural steel hollow sections are tubular steel components made by shaping steel sheets or strips at room temperature. They are used in construction for things like building frames and support columns because they are strong, lightweight, and can be made in different shapes and sizes. They are cost-effective to produce and offer design flexibility for various applications in construction projects.
What is C350LO steel?
C350LO steel is a structural steel grade designed for construction purposes. It is commonly used in building projects due to its strength and durability.
What is the difference between C250 and C350 steel?
The main difference between C250 and C350 steel is their strength. C350 steel is stronger than C250 steel.
What are the properties of grade C350 steel?
C350 grade steel is a medium strength structural steel with good ductility and weldability. It is commonly used in building and engineering applications that require strength and durability.
What steel grade is As1163 C350 equivalent to?
as1163 c350 equivalent those steel grades:
Standard AS/NZS 1163 cold formed hollow section EN10219-1 cold formed welded structural hollow sections China GB
Grade C250 S235JR Q235B
C250L0 S235J0 Q235D
C350 S355JR Q355B
C350L0 S355J0 Q355D
