mechanical/structural steel rectangular tube
Detail Information

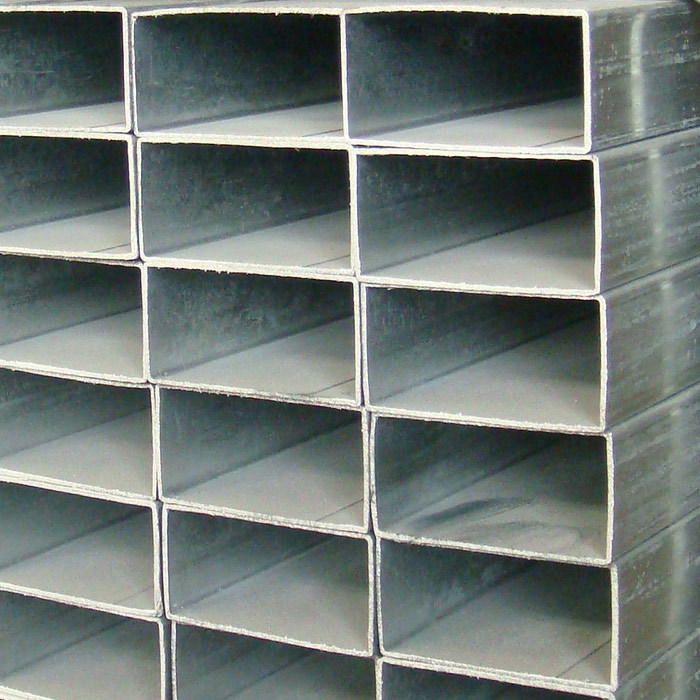

Mechanical/Structural Steel Rectangular Tube
We are pleased to offer mechanical/structural steel rectangular tubing in either A500 Grade B or A513. ASTM A500 is the standard specification for round and shaped cold-formed welded and seamless carbon steel structural tubing, while ASTM A513 is the standard specification for resistance-welded carbon and alloy steel mechanical tubing. Please visit our Gauge Conversion Chart for helpful information.
Advantageous Characteristics
Mechanical/Structural Steel Rectangular Tube are made from low carbon steel, offering a balance between strength and affordability. These tubes have excellent weldability, making them suitable for fabrication and welding applications. Send your request now.
Meets ASTM A500/A513
Economical
Good Weldability
Easy Processing
High Strength
Widely Used
Structural Steel Rectangular Tube Sizes
A513 Mechanical Tubing OD(outer diameter) ≤ 2",or OD ≤11ga wall thickness. (Note:1"=25.4mm)
A500 Structural Tubing OD(outer diameter)≥2", or OD＞11ga wall thickness.
Mechanical/Structural Steel Rectangular Tube produced by Yuantai Derun outer diameter:10*15-800*1200mm
Yuantai Derun Structural Steel Rectangular Tube Length range:0.5-26.5M
Yuantai Derun Mechanical/Structural Steel Rectangular Tube wall thickness: 0.5-60mm
if you want more size about structural steel rectangular tube dimensions,please contact us now!
Chemical Composition
|
Standard
|
C（%）
|
Fe（%）
|
Mn（%）
|
P（%） | S（%） |
|
A513
|
0.17 - 0.23
|
99.08 - 99.53
|
0.3 - 0.6
|
0.04 max | 0.05 max |
|
C（%）
|
Cu（%）
|
Fe（%）
|
S（%） | P（%） | |
|
A500
|
0.3 max
|
0.18 max
|
99 min
|
0.063 max | 0.05 max |
Physical-Mechanical Strength
|
Name
|
Tensile Strength
|
Yield Strength
|
|
ASTM A513 Tube
|
132,000psi/602 MPa
|
74,185psi/512 MPa
|
|
ASTM A500 Grade A Tube
|
45,000 psi (310 MPa)
|
39,000 psi (269 MPa)
|
|
ASTM A500 Grade B Tube
|
58,000 psi (400 MPa)
|
46,000 psi (317 MPa)
|
ASTM A500 Grade C Tube | 62,000 psi (427 MPa) | 50,000 psi (345 MPa) |
ASTM A500 Grade D Tube | 58,000 psi (400 MPa) | 26,000 psi (250 MPa) |
Applications
Mechanical/Structural steel rectangular tube have a wide range of applications. Send your application requirements immediately
Machinery
Part
Lathe
Steel beam
Car
Engineering Structure
Steel structure
Decoration
Furniture
Barrel
Hydraulic equipment
Agricultural machinery
