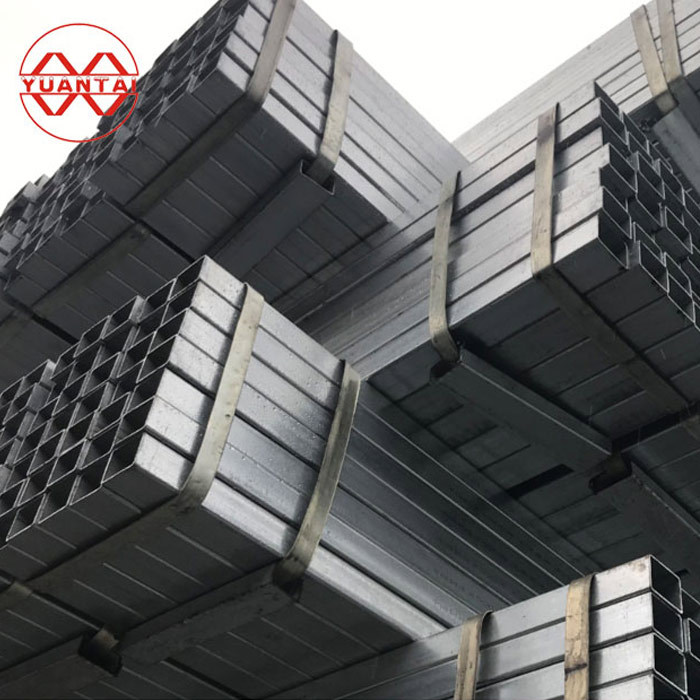

Galvanized Square Tubing
Benifit Of Square Galvanized Tubing
good strength
good toughness
good plasticity
High yield
good welding
good ductility
Classification Of Galvanized Steel Square Tubing
More Materials For You
Type
|
Material
|
Forming Process
|
Grades
|
Welded Pre Galvanized Steel Square Tubing
|
Galvanized steel coil or galvanized steel strip
|
ERW
|
Gr.A, Gr.B, Gr.C, S235, S275, S355,S420,S460, A36,Q195,Q235,Q355,etc
|
Welded Hot-Dip Galvanized Steel Square Tubings
|
Hot rolled steel coil, hot rolled steel plate
|
ERW,LSAW,SSAW
|
Gr.A/B/C,S235/275/355/420/460,A36,SS400,Q195/235/355,STKR400/490,300W/350W,etc
|
Seamless Hot-Dip Galvanized Steel Square Tubings
|
billet
|
Seamless
|
API X42,X52,X60,X65,X70,Gr.A,Gr.B,Gr.C,S235,S355,S420,S460,etc
|
Galvanized Square Tubing Sizes
O.D. mm | W.T.mm | O.D mm | W.T. mm | O.D mm | W.T. mm | O.D mm | W.T. mm |
20*20 | 1.3 | 60*120 80*100 90*90 | 1.50 | 180*180 | 3 | 300*800 400*700 550*550 500*600 | |
1.4 | 1.70 | 3.5-3.75 | 9.5-9.75 | ||||
1.5 | 1.80 | 4.5-4.75 | 11.5-11.75 | ||||
1.7 | 2.00 | 5.5-7.75 | 12-13.75 | ||||
1.8 | 2.20 | 9.5-9.75 | 15-50 | ||||
2.0 | 2.5-4.0 | 11.5-11.75 | | ||||
20*30 25*25 | 1.3 | 4.25-4.75 | 12.0-25.0 | | |||
1.4 | 5.0-6.3 | 100*300 150*250 200*200 | 2.75 | 300*900 400*800 600*600 500*700 | | ||
1.5 | 7.5-8 | 3.0-4.0 | 9.5-9.75 | ||||
1.7 | 50*150 60*140 80*120 100*100 | 1.50 | 4.5-9.75 | 11.5-11.75 | |||
1.8 | 1.70 | 11.5-11.75 | 12-13.75 | ||||
2.0 | 2.00 | 12.5-12.75 | 15-50 | ||||
2.2 | 2.20 | 13.5-13.75 | | ||||
2.5-3.0 | 2.5-2.75 | 15.5-30 | | ||||
20*40 25*40 30*30 30*40 | 1.3 | 3.0-4.75 | 150*300 200*250 | 3.75 | 300*1000 400*900 500*800 600*700 650*650 | | |
1.4 | 5.5-6.3 | 4.5-4.75 | | ||||
1.5 | 7.5-7.75 | 5.5-6.3 | 9.5-9.75 | ||||
1.7 | 9.5-9.75 | 7.5-7.75 | 11.5-11.75 | ||||
1.8 | 11.5-16 | 9.5-9.75 | 12-13.75 | ||||
2.0 | 60*160 80*140 100*120 | 2.50 | 11.5-11.75 | 15-50 | |||
2.2 | 2.75 | 13.5-30 | | ||||
2.5-3.0 | 3.0-4.75 | 200*300 250*250 | 3.75 | 400*1000 500*900 600*800 700*700 | | ||
3.25-4.0 | 5.5-6.3 | 4.5-4.75 | | ||||
25*50 30*50 30*60 40*40 40*50 40*60 50*50 | 1.3 | 7.5-7.75 | 5.5-6.3 | 9.5-9.75 | |||
1.4 | 9.5-16 | 7.5-7.75 | 11.5-11.75 | ||||
1.5 | 75*150 | 2.50 | 9.5-9.75 | 12-13.75 | |||
1.7 | 2.75 | 11.5-11.75 | 15-50 | ||||
1.8 | 3.0-3.75 | 12-13.75 | | ||||
2.0 | 4.5-4.75 | 15.5-30 | | ||||
2.2 | 5.5-6.3 | 200*400 250*350 300*300 | 4.5-6.3 | 500*1000 600*900 700*800 750*750 | | ||
2.5-3.0 | 7.5-7.75 | 7.5-7.75 | 9.5-9.75 | ||||
3.25-4.0 | 9.5-16 | 9.5-9.75 | 11.5-11.75 | ||||
4.25-4.75 | 80*160 120*120 | 2.50 | 11.5-11.75 | 12-13.75 | |||
5.0-5.75 | 2.75 | 12-13.75 | 15-50 | ||||
5.75-6.3 | 3.0-4.75 | 15.5-30 | | ||||
40*80 50*70 50*80 60*60 | 1.3 | 5.5-6.3 | 200*500 250*450 300*400 350*350 | 5.5-6.3 | 500*1100 600*900 700*800 800*800 | | |
1.5 | 7.5-7.75 | 7.5-7.75 | 9.5-9.75 | ||||
1.7 | 9.5-9.75 | 9.5-9.75 | 11.5-11.75 | ||||
1.8 | 11.5-20 | 11.5-11.75 | 12-13.75 | ||||
2.0 | 100*150 | 2.50 | 12-13.75 | 15-50 | |||
2.2 | 2.75 | 15.5-30 | | ||||
2.5-3.0 | 3.0-4.75 | 280*280 | 5.5-6.3 | 600*1100 700*1000 800*900 850*850 | | ||
3.25-4.0 | 5.5-6.3 | 7.5-7.75 | 9.5-9.75 | ||||
4.25-4.75 | 7.5-7.75 | 9.5-9.75 | 11.5-11.75 | ||||
5.0-6.0 | 9.5-9.75 | 11.5-11.75 | 12-13.75 | ||||
40*100 60*80 70*70 | 1.3 | 11.5-20 | 12-13.75 | 15-50 | |||
1.5 | 100*200 120*180 150*150 | 2.50 | 15.5-30 | | |||
1.7 | 2.75 | 350*400 300*450 | 7.5-7.75 | 700*1100 800*1000 900*900 | | ||
1.8 | 3.0-7.75 | 9.5-9.75 | 11.5-11.75 | ||||
2.0 | 9.5-9.75 | 11.5-11.75 | 12-13.75 | ||||
2.2 | 11.5-20 | 12-13.75 | 15-50 | ||||
2.5-3.0 | 100*250 150*200 | 3.00 | 15.5-30 | | |||
3.25-4.0 | 3.25-3.75 | 200*600 300*500 400*400 | 7.5-7.75 | 800*1100 900*1000 950*950 | | ||
4.25-4.75 | 4.25-4.75 | 9.5-9.75 | 11.5-11.75 | ||||
5.0-6.3 | 9.5-9.75 | 11.5-11.75 | 12-13.75 | ||||
50*100 60*90 60*100 75*75 80*80 | 1.3 | 11.5-11.75 | 12-13.75 | 15-50 | |||
1.5 | 12.25 | 15.5-40 | | ||||
1.7 | 140*140 | 3.0-3.75 | 300*600 400*500 450*450 | 7.5-7.75 | 900*1100 1000*1000 800*1200 | | |
1.8 | 4.5-6.3 | 9.5-9.75 | | ||||
2.0 | 7.5-7.75 | 11.5-11.75 | 20-60 | ||||
2.2 | 9.5-9.75 | 12-13.75 | | ||||
2.5-3.0 | 11.5-25 | 15.5-40 | | ||||
3.25-4.0 | 160*160 | 3.00 | 400*600 500*500 | 9.5-9.75 | 1100*1000 1100*1100 | | |
4.25-4.75 | | 3.5-3.75 | 11.5-11.75 | 20-60 | |||
5.0-5.75 | | 4.25-7.75 | 12-13.75 | | |||
7.5-8 | | 9.5-25 | 15.5-40 |
|
Strictly Follow The Acceptance Standards For Galvanized Square Pipes During Production
Theoretical Weight Calculation Formula For Galvanized Square Tubing
Other Parameters
Product Part Parameters(GB/T3094-2000) | |||||
Side length/mm | wall thickness/mm | Cross-sectional area/cm2 | Theoretical weight/kg/M | Moment of inertia/cm4 | section modulus/cm3 |
40 | 3.5 | 4.9 | 3.85 | 11.16 | 5.58 |
4 | 5.49 | 4.56 | 14.37 | 6.84 | |
5 | 6.98 | 5.48 | 16.56 | 7.87 | |
6 | 7.55 | 5.93 | 15.34 | 7.67 | |
50 | 4 | 7.09 | 5.56 | 25.56 | 10.22 |
5 | 8.58 | 6.73 | 29.81 | 11.93 | |
6 | 9.95 | 7.81 | 33.35 | 13.34 | |
7 | 11.21 | 8.8 | 36.23 | 14.49 | |
8 | 12.35 | 9.7 | 38.51 | 15.41 | |
60 | 5 | 10.58 | 8.3 | 54.57 | 18.19 |
6 | 13.35 | 9.69 | 61.82 | 20.61 | |
7 | 14.01 | 11 | 68.03 | 22.68 | |
8 | 15.55 | 12.21 | 73.28 | 24.43 | |
70 | 5 | 12.58 | 9.87 | 90.26 | 25.79 |
6 | 14.7 | 11.58 | 103.1 | 29.47 | |
7 | 16.81 | 13.19 | 114.5 | 32.72 | |
8 | 18.75 | 14.72 | 124.5 | 35.57 | |
80 | 5 | 14.58 | 11.44 | 138.9 | 34.72 |
6 | 17.15 | 13.46 | 159.7 | 39.93 | |
7 | 19.61 | 15.39 | 178.5 | 44.63 | |
8 | 21.95 | 17.23 | 195.4 | 48.85 | |
92 | 5 | 16.98 | 13.33 | 217.1 | 47.19 |
6 | 20.03 | 15.72 | 251.1 | 54.59 | |
7 | 22.97 | 18.03 | 282.3 | 61.38 | |
8 | 25.79 | 20.25 | 310.9 | 67.58 | |
100 | 5 | 18.58 | 14.58 | 282.8 | 56.57 |
6 | 21.95 | 17.23 | 328.2 | 65.54 | |
7 | 25.21 | 19.79 | 370.2 | 74.04 | |
8 | 28.35 | 22.36 | 408.9 | 81.78 | |
108 | 5 | 19.96 | 15.67 | 346.99 | 72.14 |
6 | 23.55 | 18.49 | 400.07 | 85.13 | |
7 | 27.02 | 21.21 | 448.15 | 97.61 | |
8 | 30.35 | 23.82 | 491.42 | 109.56 | |
10 | 36.62 | 28.75 | 564.27 | 131.84 | |
12 | 42.37 | 33.26 | 620.05 | 151.91 | |
12.5 | 43.73 | 34.33 | 631.48 | 156.57 | |
14 | 47.59 | 37.36 | 660.12 | 169.71 | |
16.5 | 53.38 | 41.9 | 690.13 | 188.75 | |
18 | 56.46 | 44.32 | 698.5 | 198.48 | |
110 | 7 | 28.01 | 21.99 | 503.4 | 91.54 |
8 | 31.55 | 24.77 | 557.9 | 101.4 | |
9 | 34.98 | 27.46 | 608.4 | 110.6 | |
10 | 37.42 | 29.37 | 600.9 | 137.26 | |
12 | 43.33 | 34.01 | 661.57 | 158.3 | |
14 | 48.71 | 38.24 | 705.79 | 177.05 | |
16 | 53.57 | 42.05 | 734.96 | 193.47 | |
18 | 57.9 | 45.45 | 750.37 | 207.58 | |
120 | 5 | 22.36 | 17.55 | 485.47 | 89.79 |
6 | 26.43 | 20.75 | 562.16 | 106.17 | |
7 | 30.38 | 23.85 | 632.54 | 121.99 | |
8 | 34.19 | 26.84 | 696.82 | 137.23 | |
10 | 41.42 | 32.15 | 807.91 | 165.94 | |
12 | 48.13 | 37.78 | 987.05 | 192.03 | |
14 | 54.31 | 42.63 | 9665.79 | 216.23 | |
16 | 59.97 | 47.08 | 1015.66 | 237.3 | |
150 | 6 | 33.63 | 26.4 | 1145.91 | 168.85 |
7 | 38.78 | 30.44 | 1299.44 | 194.7 | |
8 | 43.79 | 34.38 | 1443 | 219.85 | |
10 | 53.42 | 41.93 | 1701.21 | 268.02 | |
12 | 62.53 | 49.09 | 1922.61 | 313.26 | |
14 | 71.11 | 55.82 | 2109.19 | 355.49 | |
16 | 79.17 | 62.15 | 2262.95 | 394.63 | |
180 | 16 | 98.37 | 77.22 | 4252.42 | 590.55 |
18 | 108.3 | 85.02 | 4541.3 | 648.77 | |
200 | 8 | 59.79 | 46.94 | 3621 | 400.25 |
10 | 73.42 | 58.63 | 4337.63 | 491.53 | |
12 | 86.53 | 67.93 | 4983.59 | 579.08 | |
14 | 99.11 | 77.8 | 5562.26 | 662.78 | |
16 | 111.17 | 87.27 | 6076.38 | 742.55 | |
18 | 122.7 | 96.32 | 6528.64 | 818.29 | |
250 | 10 | 93.42 | 73.33 | 8841.87 | 781.73 |
12 | 110.53 | 86.77 | 10254.22 | 924.94 | |
14 | 127.11 | 99.78 | 11556.24 | 1063.51 | |
16 | 143.17 | 112.39 | 12751.41 | 1197.31 | |
18 | 158.7 | 124.58 | 13843.17 | 1326.27 | |
280 | 10 | 105.42 | 82.75 | 12648.95 | 987.86 |
12 | 124.93 | 98.07 | 14726.82 | 1170.88 | |
14 | 143.91 | 112.97 | 16663.46 | 1348.77 | |
16 | 162.37 | 127.46 | 18462.79 | 1521.42 | |
18 | 180.3 | 141.54 | 20128.71 | 1688.73 |
Application
Galvanized Square Tubing For Carports
Galvanized Square Tubing For Boat Trailers
Galvanized Square Tubing Fence
