hot galvanized steel structural pipe

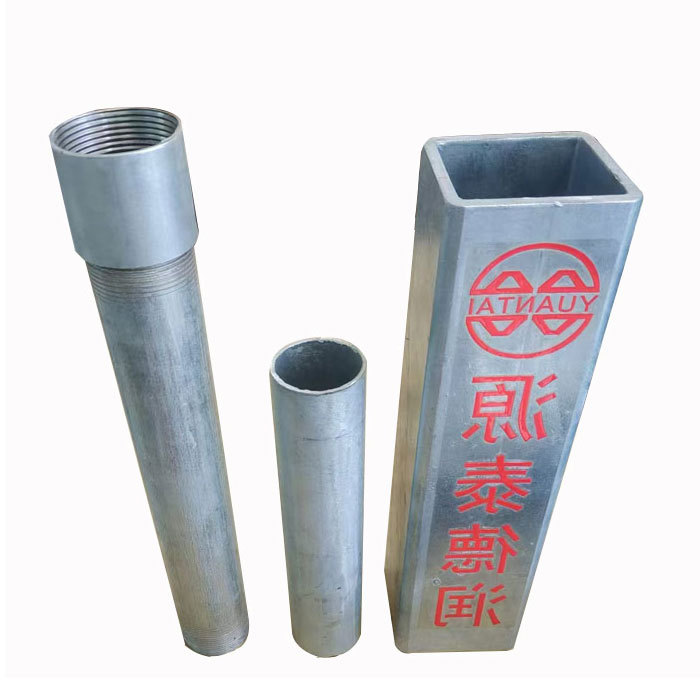

hot galvanized steel structural pipe

hot galvanized steel structural pipe
CategoriesHot Dipped Galvanized Steel Pipe
BrandYuantai Derun Steel Pipe Manufacturing Group
ModelHDG Tube
Thickness0.5- 60 mm
CertificationCE,LEED,BV,PHD&EPD,BC1,EN 10210,EN10219,ISO9000
Toleranceas required
Length0.5-24M according to client requirement
StandardsASTM A500/A501,EN10219,EN10210
MaterialsGr.A,Gr.B,Gr.C,S235,S275,S355,S420,S460, A36,
Delivery Time7-30 Days
FOB portTianjin port
Terms of PaymentL/C, T/T
Update TimeDec 22,2024
Contact Now
Favorites
Detail Information

Hot Galvanized Steel Structural Pipe

Hot Galvanized Steel Structural Pipe is a corrosion-resistant steel pipe specifically designed for structural support. Hot dip galvanized steel structural pipes have excellent anti-corrosion performance, good support performance, easy processing and welding, and have received unanimous praise from steel pipe buyers around the world. The hot-dip galvanized steel structural pipes produced by Yuantai Derun have the advantages of complete specifications, tight welds, sufficient zinc coating, and good anti-corrosion performance. Send the request immediately.

Advantages And Performance Of Hot Galvanized Structural Steel Pipe

1. The processing cost of hot-dip galvanized steel structural pipes is low: the rust prevention cost of hot-dip galvanizing is lower than other coatings. Generally speaking, the cost of hot-dip galvanizing is lower than that of coating other protective coatings, for a simple reason. Other protective coatings, such as polishing and painting, are labor-intensive processes, while hot-dip galvanizing is a highly mechanized and strictly controlled factory construction process.

2. Hot dip galvanized structural pipes are durable: In suburban environments, the standard hot-dip galvanized anti rust thickness can be maintained for more than 50 years without maintenance; In urban or coastal areas, standard hot-dip galvanized anti rust coatings can be maintained for 20 years without the need for maintenance.

3. Hot dip galvanized steel structural pipes have good reliability: the bonding between the galvanized layer and the steel is metallurgical, making zinc a part of the steel surface, thus ensuring good durability of the coating.

4. The coating toughness of galvanized steel structural pipes is strong: the galvanized layer forms a special metallurgical structure that can withstand mechanical damage during transportation and use.

5. Comprehensive protection: Each part of the plated part can be galvanized, even in concave, sharp, and concealed areas, it can be fully protected.

6. Time and effort saving: Galvanizing process is faster than other coating methods, which can avoid the time required for painting on the construction site after installation.

7. Easy inspection: The hot-dip galvanized layer can be visually inspected and tested using a simple non-destructive coating thickness gauge.
8. Reliability: The specifications of hot-dip galvanizing usually comply with BS EN ISO 1461, which limits its minimum zinc layer thickness, so its rust prevention period and performance are reliable and predictable.

More Galvanized Structural Steel Pipe Types For You

At Yuantai Derun, the types of galvanized structural steel pipes are very complete, making it convenient for customers to purchase in one stop. Here are some common types of galvanized structural steel pipes. If your requirements do not appear in this presentation, don't worry. You can also send your specific requirements to our account manager, and we will solve the problem for you as soon as possible. Send the request immediately.
Galvanized Square Structure Steel Pipe
Galvanized Square Structure Steel Pipe
Galvanized Rectangular Structure Steel Pipe
Galvanized Rectangular Structure Steel Pipe
Galvanized Round Structure Steel Pipe
Galvanized Round Structure Steel Pipe
pre galvanized round structure steel pipe
Pre Galvanized Round Structure Steel Pipe

Standard And Steel Grade

Standards: ASTM A500/A501,EN10219/10210,JIS G3466,GB/T6728/3094 AS1163, CSA G40.20/G40.21
Materials: Gr.A/B/C,S235/275/355/420/460,A36,SS400,Q195/235/355,STKR400/490,300W/350W

Free Structural Galvanized Steel Pipe Samples For You

Yuantai Derun can provide free structural galvanized steel pipe samples to buyers, with a length of less than 20 centimeters. You only need to pay for one shipping fee. Get free samples immediately.

Complete Structural Galvanized Steel Pipe Sizes For You

At Yuantai Derun, you can find any specification of structural galvanized steel pipes. The following is a size and weight table for some structural galvanized steel pipes. If the model you need is not in this table, it's okay. For more specifications of structural galvanized steel pipes, please contact our customer manager.
Name Size Theoretical weight Weight of single piece weight of single budles Piece/Bundles
galvanized square pipe 100*100*2.5 102.571 0.046 1.140 25
galvanized square pipe 100*100*2.75 3.750 0.050 1.250 25
galvanized square pipe 100*100*3.0 120.963 0.054 1.359 25
galvanized square pipe 100*100*3.5 92.929 0.063 1.575 25
galvanized square pipe 100*100*3.75 209.092 0.067 1.682 25
galvanized square pipe 100*100*4.5 321.651 0.080 1.998 25
galvanized square pipe 100*100*4.75 275.314 0.084 2.102 25
galvanized square pipe 120*120*3.0 17.863 0.066 1.051 16
galvanized square pipe 150*150*3.0 0.909 0.083 0.744 9
galvanized square pipe 150*150*3.5 53.465 0.096 0.864 9
galvanized square pipe 150*150*3.75 10.056 0.103 0.924 9
galvanized square pipe 150*150*4.5 16.513 0.122 1.101 9
galvanized square pipe 150*150*4.75 35.944 0.129 1.159 9
galvanized square pipe 150*150*5.75 77.744 0.155 1.391 9
galvanized square pipe 150*150*7.75 7.364 0.205 1.841 9
galvanized square pipe 40*40*1.7 1.175 0.012 1.212 100
galvanized square pipe 40*40*2.0 23.888 0.014 1.411 100
galvanized square pipe 40*40*2.5 157.711 0.017 1.733 100
galvanized square pipe 40*40*2.75 92.504 0.019 1.890 100
galvanized square pipe 40*40*3.0 181.247 0.020 2.044 100
galvanized square pipe 40*40*3.5 9.368 0.023 2.342 100
galvanized square pipe 40*40*3.75 2.188 0.025 2.487 100
galvanized square pipe 40*40*4.5 0.058 0.029 2.902 100
galvanized square pipe 50*50*1.7 24.422 0.015 0.981 64
galvanized square pipe 50*50*2.0 14.876 0.018 1.144 64
galvanized square pipe 50*50*2.5 14.352 0.022 1.411 64
galvanized square pipe 50*50*2.75 1.517 0.024 1.541 64
galvanized square pipe 50*50*3.0 5.427 0.026 1.670 64
galvanized square pipe 50*50*3.5 1.501 0.030 1.921 64
galvanized square pipe 50*50*3.75 6.579 0.032 2.044 64
galvanized square pipe 50*50*4.5 2.213 0.038 2.400 64
galvanized square pipe 50*50*4.75 2.437 0.039 2.515 64
galvanized square pipe 60*60*1.7 8.948 0.019 0.908 49
galvanized square pipe 60*60*2.0 2.122 0.022 1.061 49
galvanized square pipe 60*60*3.0 450.812 0.032 1.556 49
galvanized square pipe 60*60*3.5 554.163 0.037 1.794 49
galvanized square pipe 60*60*3.75 97.468 0.039 1.911 49
galvanized square pipe 60*60*4.5 137.452 0.046 2.253 49
galvanized square pipe 60*60*4.75 21.280 0.048 2.364 49
galvanized square pipe 80*80*2.5 2.605 0.036 1.303 36
galvanized square pipe 80*80*2.75 109.868 0.040 1.427 36
galvanized square pipe 80*80*3.0 29.192 0.043 1.550 36
galvanized square pipe 80*80*3.5 148.529 0.050 1.793 36
galvanized square pipe 80*80*3.75 269.735 0.053 1.913 36
galvanized square pipe 80*80*4.5 269.047 0.063 2.266 36
galvanized square pipe 80*80*4.75 186.569 0.066 2.382 36
galvanized rectangular pipe 100*200*3.0 15.701 0.083 0.661 8
galvanized rectangular pipe 100*200*3.5 19.197 0.096 0.768 8
galvanized rectangular pipe 100*200*3.75 146.947 0.103 0.821 8
galvanized rectangular pipe 100*200*4.5 39.877 0.122 0.979 8
galvanized rectangular pipe 100*200*4.75 26.797 0.129 1.031 8
galvanized rectangular pipe 100*200*5.75 43.277 0.155 1.236 8
galvanized rectangular pipe 40*80*2.0 0.455 0.022 1.082 50
galvanized rectangular pipe 40*80*2.5 68.235 0.027 1.338 50
galvanized rectangular pipe 40*80*2.75 93.658 0.029 1.463 50
galvanized rectangular pipe 40*80*3.0 259.757 0.032 1.587 50
galvanized rectangular pipe 40*80*3.5 201.381 0.037 1.831 50
galvanized rectangular pipe 40*80*3.75 479.190 0.039 1.950 50
galvanized rectangular pipe 50*100*2.5 107.908 0.034 1.082 32
galvanized rectangular pipe 50*100*2.75 117.353 0.037 1.185 32
galvanized rectangular pipe 50*100*3.0 138.911 0.040 1.287 32
galvanized rectangular pipe 50*100*3.5 139.716 0.047 1.488 32
galvanized rectangular pipe 50*100*3.75 178.231 0.050 1.587 32
galvanized rectangular pipe 50*100*4.5 20.607 0.059 1.879 32
galvanized rectangular pipe 50*100*4.75 49.593 0.062 1.974 32
galvanized rectangular pipe 60*120*2.5 30.917 0.041 1.145 28
galvanized rectangular pipe 60*120*2.75 102.902 0.045 1.255 28
galvanized rectangular pipe 60*120*3.0 234.981 0.049 1.364 28
galvanized rectangular pipe 60*120*3.5 191.327 0.056 1.579 28
galvanized rectangular pipe 60*120*4.5 11.429 0.071 2.286 32
galvanized rectangular pipe 60*120*4.5 182.365 0.071 2.000 28
galvanized rectangular pipe 60*120*4.75 31.547 0.075 2.103 28
galvanized rectangular pipe 60*80*2.5 2.077 0.031 1.101 35
galvanized rectangular pipe 60*80*2.75 24.082 0.034 1.206 35
galvanized rectangular pipe 60*80*3.0 153.161 0.037 1.309 35
galvanized rectangular pipe 60*80*3.5 58.811 0.043 1.512 35
galvanized rectangular pipe 60*80*3.75 101.587 0.046 1.612 35
galvanized rectangular pipe 80*120*3.0 0.979 0.054 1.305 24
galvanized rectangular pipe 80*120*3.5 247.411 0.063 1.512 24
galvanized rectangular pipe 80*120*3.75 44.671 0.067 1.615 24
galvanized rectangular pipe 80*120*4.5 97.814 0.080 1.918 24
galvanised round pipe 10.3-3620 More>> More>>

Making Process Of Structural Galvanized Steel Pipe

Yuantai Derun makes structural galvanised steel pipes using two processes. One is hot-dip galvanizing, the other is pre-galvanizing and forming welding. Here are the main steps of the hot-dip galvanizing process:
1. Treatment of the surface: Clean the metal to remove dirt, oil stains and rust.
2. Acid washing: Acid wash the metal to remove any remaining oxides or contaminants.
3. Flux: Immerse the metal in a flux solution to remove any remaining oxides and prevent further oxidation during galvanising.
4. Galvanising: Galvanise the metal in a bath of molten zinc at 840 °F (449 °C). Zinc forms a coating on iron or steel.
5. Precision machining: Then cool the galvanised metal and treat it with a chromate conversion coating or other precision machining to improve its appearance and durability.
Hot dip galvanising is a common method for protecting steel structures from corrosion. This is an efficient and cost-effective method to extend the service life of metal structures.

Application And Cases

Galvanized square structure steel pipe/tube produced by Yuantai Derun is used for many industries,such as:
1. Theater architecture
2. High end villa clusters
3. Prefabricated buildings
4. Shipbuilding
5. Agricultural machinery manufacturing
6. Truck manufacturing
7. Lathe equipment
8. Outdoor stage construction
9. Greenhouse construction
10. Subway construction
11. Fence and Guardrail
12. Urban lamp post
13. Steel structure factory building
14. Photovoltaic structure
15. Steel beams and ground stakes
16. Bridge construction
17. Tunnel support
18. Mine support
National Grand Theatre
THEATER CONSTRUCTION
Located in the west of Tiananmen Square in central Beijing, the National Grand Theatre is the largest theater complex in Asia.
Dubai Hill high-end villa construction project
High grade villa building
In 2018, we provided steel pipe products for Dubai Hill high-end villa construction project

FAQS

hot to buy 3 galvanized steel structural pipe?
If the quantity is small, please purchase from the local metal supermarket. If you have purchased a large quantity of 3 galvanized steel structural pipes, please contact a large structural galvanized steel pipe factory like Yuantai Derun for procurement, which will help you save money. Send the request immediately.
What is the lifespan of hot-dip galvanized structural steel pipes?
The average lifespan of hot-dip galvanized structural steel pipes produced by Yuan Taide Run can reach up to 30 years.
Which steel grades and standards are suitable for hot-dip galvanized structural steel pipes?
The standards for hot-dip galvanized steel structural pipes mainly include ASTM A500/A501, EN10219/0210, JIS G3466, GB/T6728/3094 AS1163, CSA G40.20/G40.21, and so on.
The steel grades of hot-dip galvanized structural steel pipes mainly include Gr A/B/C, S235/275/355/420/460, A36, SS400, Q195/235/355, STKR400/490300W/350W, etc.
