High-Quality EN10219 S275J0H 2 x 6 steel rectangular tube
Detail Information
High-Quality EN10219 S275J0H 2 x 6 Steel Rectangular Tube
EN10219 S275J0H 2 x 6 Steel Rectangular Tube is a rectangular hollow section made from S275J0H grade steel, which offers exceptional mechanical properties. This steel pipe exhibits high strength, good weldability, and excellent resistance to corrosion, making it suitable for various construction and industrial applications. Send Your Inquiry Now!
Hot Selling Types Of EN10219 S275J0H 2 x 6 Steel Rectangular Tube
According to different production processes and coatings, Yuantai Derun can produce several popular EN10219 S275J0H 2 x 6 Steel Rectangular Tubes, as shown in the following figure.When making a purchase, you can choose according to their anti-corrosion ability level. According to their anti-corrosion ability, they are hot-dip galvanized 2 x 6 Steel Rectangular Tube, zinc aluminum magnesium coated 2 x 6 Steel Rectangular Tube, pre galvanized 2 x 6 Steel Rectangular Tube, and black 2 x 6 Steel Rectangular Tube.
Hot-Dip Galvanized 2 X 6 Steel Rectangular Tube
Zinc Aluminum Magnesium Coated 2 X 6 Steel Rectangular Tube
Pre Galvanized 2 X 6 Steel Rectangular Tube

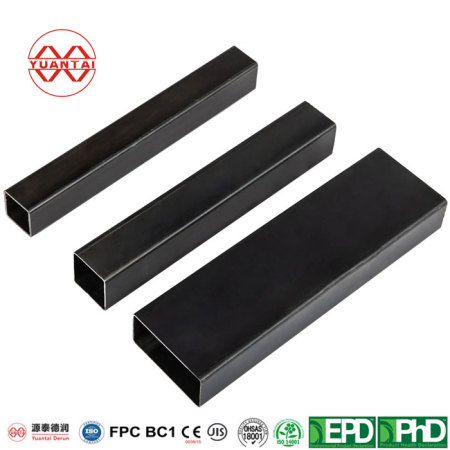

Black 2 X 6 Steel Rectangular Tube
Benefits Of Using EN10219 S275J0H 2 x 6 Steel Rectangular Tube
The benefits of using EN10219 S275J0H 2 x 6 steel rectangular pipes are as follows:
1. High strength: S275J0H material is a high-strength structural steel suitable for applications that require high load-bearing capacity.
2. Good welding performance: This type of steel has excellent welding performance, making it easy to process and install.
3. Strong adaptability: It can be widely used in various structural engineering, such as construction, vehicles, ships, and heavy machinery.
Manufacturing Process
Production process of Hot Dip Galvanized 2 X 6 Steel Rectangular Tube: Black Tube ->Surface Treatment ->Hot Dip Galvanizing ->Passivation ->Drying ->Testing ->Spray Label Storage
The production process of Zinc Aluminum Magnesium Coated 2 X 6 Steel Rectangular Tube includes: unwinding of zinc aluminum magnesium coated steel coil ->edge cutting and welding ->straightening ->roll cold forming ->high-frequency welding ->removal of excess flux ->water cooling ->cutting ->detection ->spray label storage
The production process of Pre Galvanized 2 X 6 Steel Rectangular Tube includes: uncoiling of galvanized steel coil ->trimming and welding ->straightening ->roll cold forming ->high-frequency welding ->removal of excess flux ->water cooling ->cutting ->testing ->labeling and storage
Production process of Black 2 X 6 Steel Rectangular Tube: Hot rolled coil uncoiling ->Edge trimming and welding ->Straightening ->Roll cold forming ->High frequency welding ->Removal of excess flux ->Water cooling ->Cutting ->Testing ->Spray label storage
Chemical Composition Of EN10219 S275J0H 2 x 6 Steel Rectangular Tube
Carbon ≤ 0.20%, silicon ≤ not required, manganese ≤ 1.50%, phosphorus ≤ 0.035%, sulfur ≤ 0.035%, nitrogen ≤ 0.009%
Mechanical Properties Of EN10219 S275J0H 2 x 6 Steel Rectangular Tube
3mm<wall thickness ≤ 16mm: yield strength ≥ 275MPa, tensile strength ≥ 410-560MPa, elongation ≥ 20%
16mm<wall thickness ≤ 40mm: yield strength ≥ 265MPa, tensile strength ≥ 410-560MPa, elongation ≥ 20%
Customized Options
At Yuantai Derun, you can flexibly customize EN10219 S275J0H 2 x 6 Steel Rectangular Tube. Here are some customization options.
1. Shape
You can customize the shape of EN10219 S275J0H 2 x 6 Steel Rectangular Tube, such as right angle rectangular tube, arc angle rectangular tube, etc.
2. Coating
You can flexibly choose the coating of EN10219 S275J0H 2 x 6 Steel Rectangular Tube, such as oil coating, spray painting, galvanizing, anti-corrosion, and so on.
3. Processing services
You can flexibly choose some processing services for EN10219 S275J0H 2 x 6 Steel Rectangular Tube, such as heat treatment, corner heating, punching, cutting, welding, and so on.
Free Sample Service
In order to let customers understand the quality of EN10219 S275J0H 2 x 6 Steel Rectangular Tube, Yuantai Derun has launched a free sample preparation service. The sample length must be within 20 centimeters, and you only need to pay one shipping fee. Get free samples immediately.
Application
EN10219 S275J0H 2 x 6 rectangular tubes are mainly used in building structures, machinery manufacturing, and the automotive industry. In the field of architecture, this rectangular tube can be used as a structural support for bridges, high-rise buildings, and other structures; The mechanical field can be used to manufacture various types of mechanical parts; In the automotive field, it can be used to manufacture components such as car bodies and chassis.
FAQS
How To know the weight of a 2 x 6 rectangular steel tube?
There are two ways to know. The first is weighing, which is calculated based on the actual weight weighed. The second method is theoretical weight calculation, which can be calculated according to the corresponding formula. However, the weight calculated by this algorithm is only the theoretical weight and may not match the actual weight.The weight of a rectangular tube is usually determined by calculating its volume. The following is the formula for calculating the weight of a rectangular tube: weight (kg)=length (m) × Width (m) × Thickness (mm) × 0.00785, where 0.00785 is the density of steel material, calculated in kilograms per cubic meter. You can contact us for the weight!
How many shapes are there for S275J0H Steel Tube?
square,rectangular,circular and special shaped tube.
what is the s275j0h properties?
The properties of S275j0h include high strength, good toughness and plasticity, excellent welding performance, and good processability.
S275j0h belongs to low-alloy high-strength steel, with high yield strength and tensile strength, while maintaining good plasticity and toughness, ensuring that the structure remains stable and intact under external forces. This material can meet the performance requirements of various engineering structures and is widely used in fields such as bridges, construction, machinery manufacturing, ships, pressure vessels, etc. It is particularly suitable for structural components that need to withstand large loads and stresses. The chemical composition of S275j0h complies with relevant international standards such as EN 10025, and the specific element content may vary depending on the manufacturer and batch. In addition, S275j0h also has good welding and processing performance, and can be connected and processed through various welding methods. The welded joint has high strength and good toughness, which can meet the requirements of engineering structures for the strength and toughness of the connection parts. This material also has good fatigue resistance and can maintain good performance under alternating loads
What steel grade is S275j0h equivalent to?
1.S275J0H is equivalent to Q275C and belongs to the Chinese standard.
Are s275j0h steel recyclable?
Yes, s275j0h steel are recyclable.
